Outline
DefibReady is designed to create a safe and repeatable high-fidelity training situation for medical & nursing students, as well as other primary healthcare workers to perform manual external defibrillation, AED, pacing and monitoring operation. The system consists of a simulated defibrillator, a wearable defibrillation vest and a control system.
Skills Gained
· Defibrillation operation
· Pacing operation
· Monitoring operation
Features
Hardware

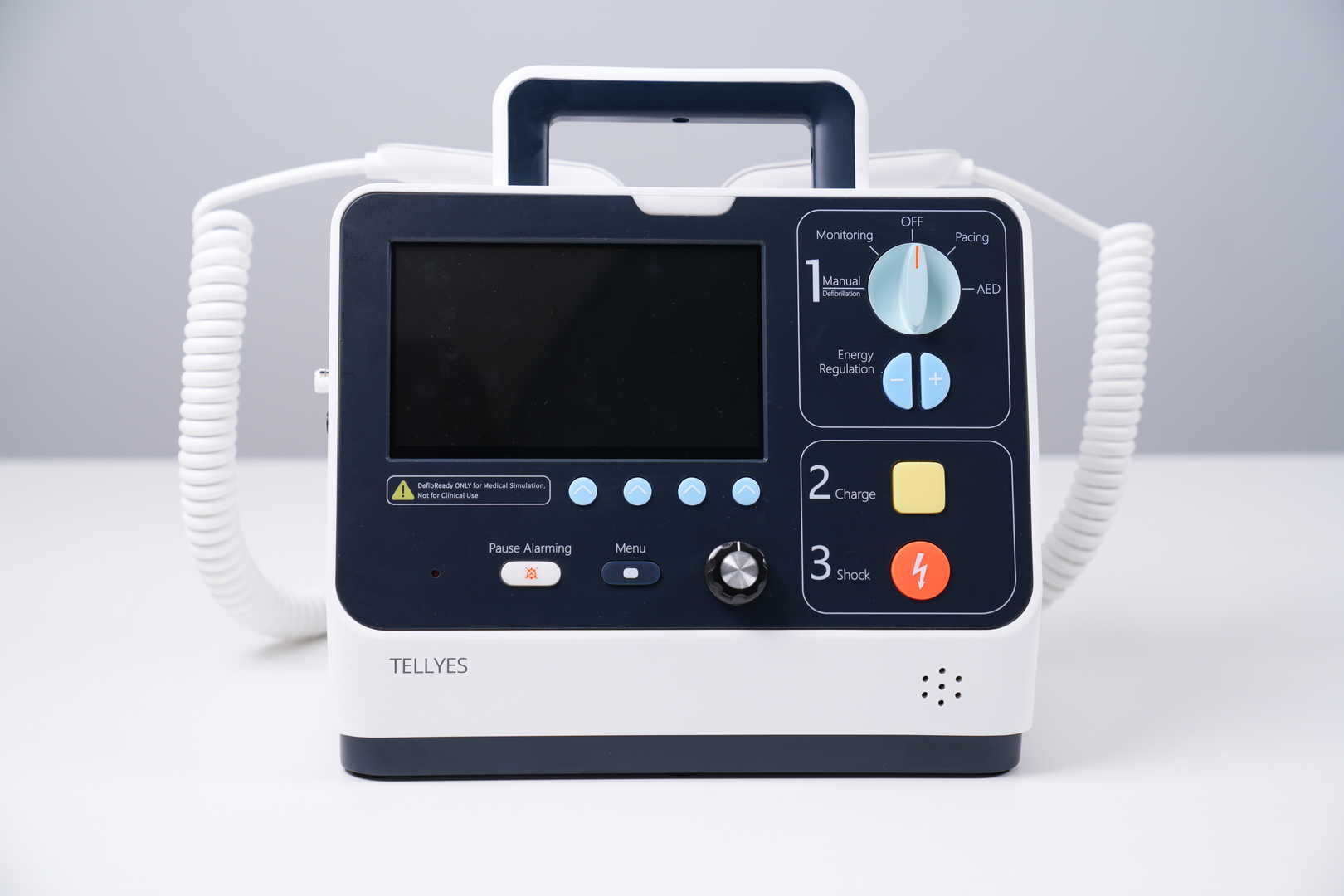

· Almost the same appearance with a real defibrillator
· High-resolution touchscreen for parameters display & setup
· Knobs & buttons can function just as a real defibrillator
· Energy regulation with “+””-” buttons
· Charging & discharging operations can be done with DefibReady
· Defibrillation energy selection
· No high voltage current, always safe for users
· 4 modes available, including Monitor Mode, AED Mode, Manual Defibrillation Mode, Pacing Mode
· DefibReady has a charging button and there will be charging sound effects just like a real defibrillator
· A button for 2-min alarming pause. Press it under Monitor Mode, alarming light and sound will be turned off, but the parameters in the screen still have alarm flashing
· Menu button for alarm, NIBP setup and log review in Monitor Mode
· Different levels of alarm sounds and alarm light effects

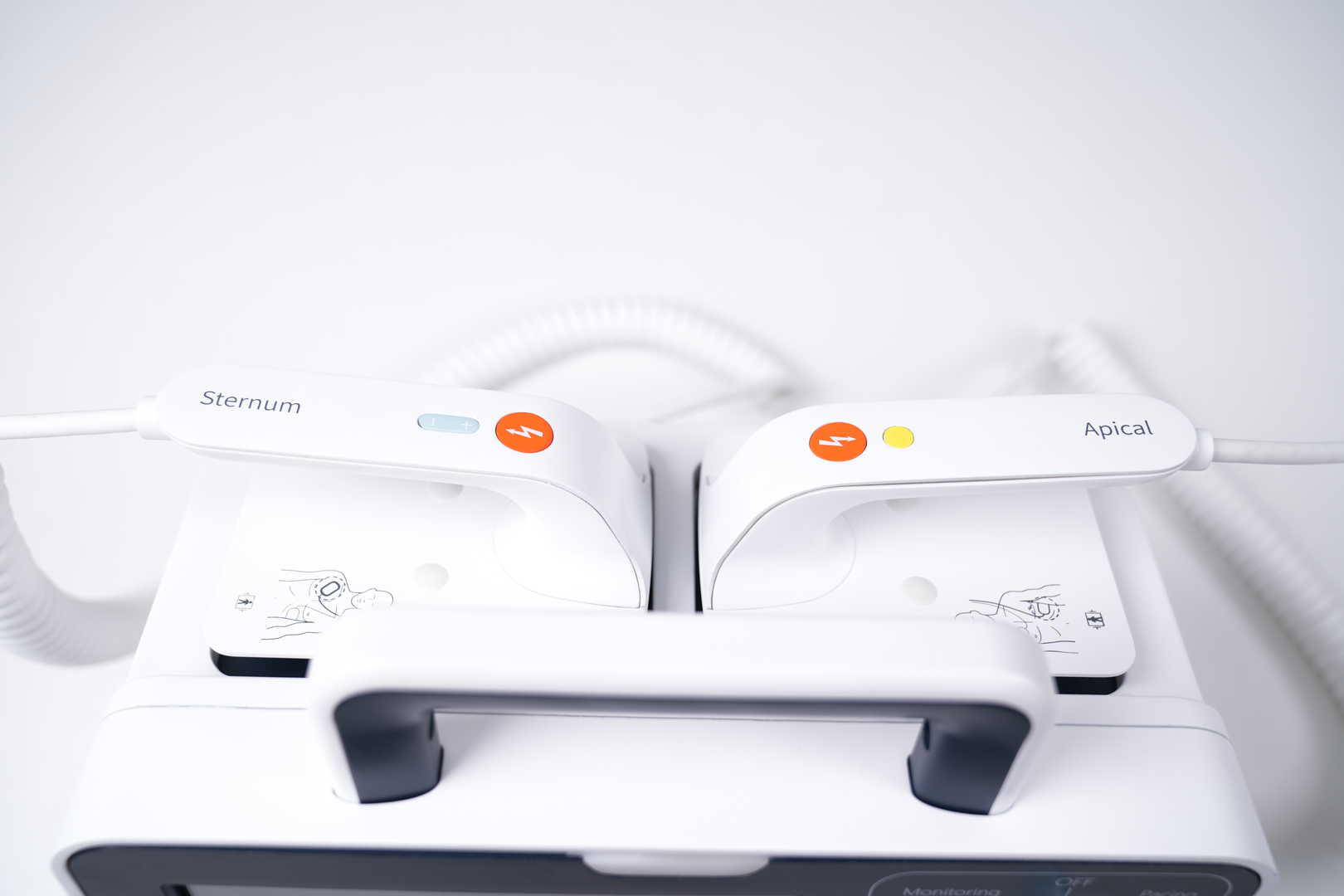

· Realistic defibrillation paddles & pads with visual reminder for right position
· Buttons on defibrillation paddles for quick operation of energy regulation, charging and discharging
· Automatic detection of paddle position, right placement will cause handle vibration during discharging
· Defibrillation paddles can be removed for size change between adult and children operation
· Automatic detection of pads connection in AED Mode. There will be voice prompt if pad falls

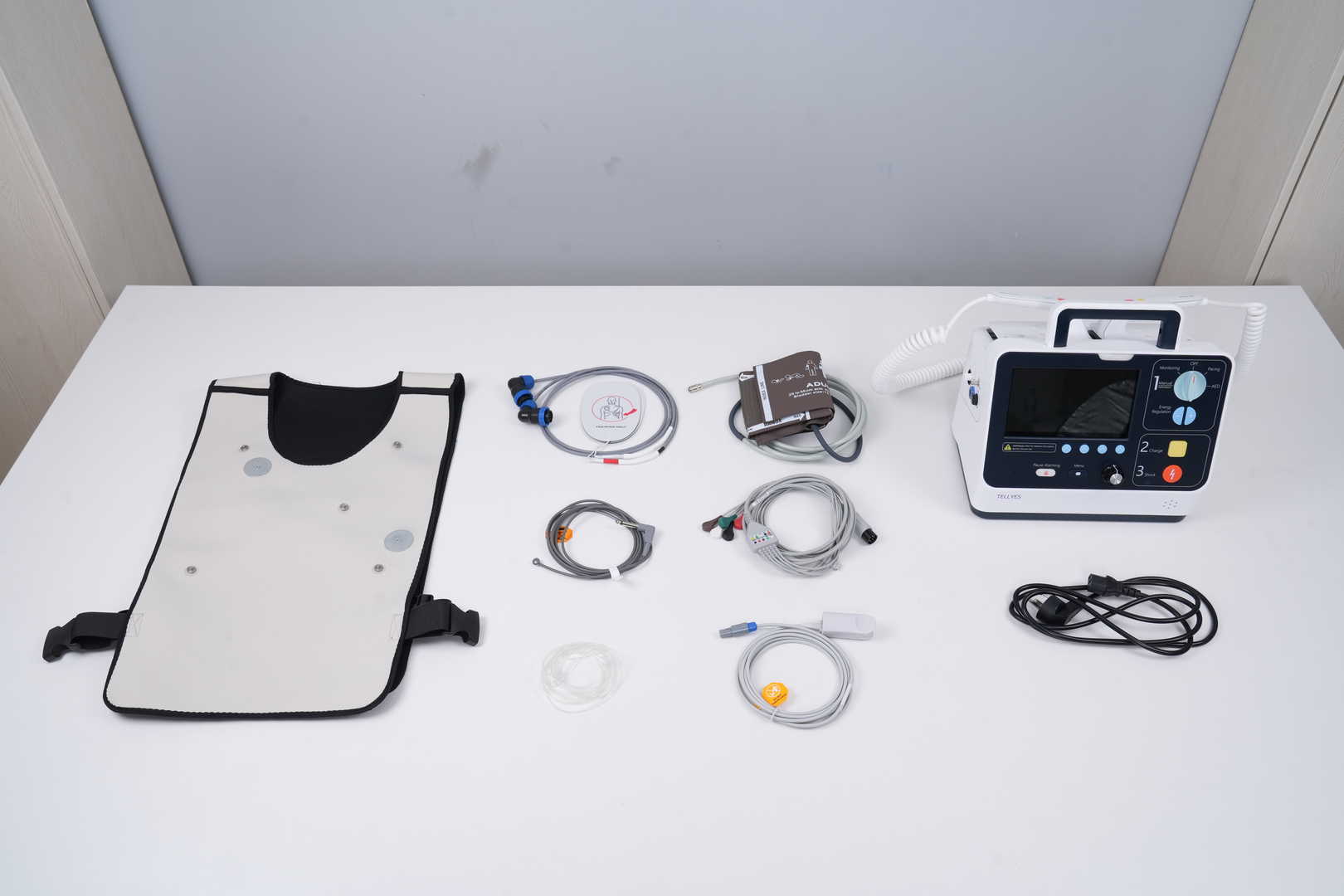

· DefibReady comes with 5-lead cable, a pulse oximetry, a NIBP cuff, a cable temperature probe, and a CO2 sampling cannula
· Real accessory connection experience with DefibReady like a real defibrillator
· Detection of 5-lead ECG detachment
· Detection of pulse oximetry detachment
· Real NIBP cuff air-fill & air-release with audible sound
· External power supply and built-in battery available. A full charge of the built-in battery supports 8-hour use

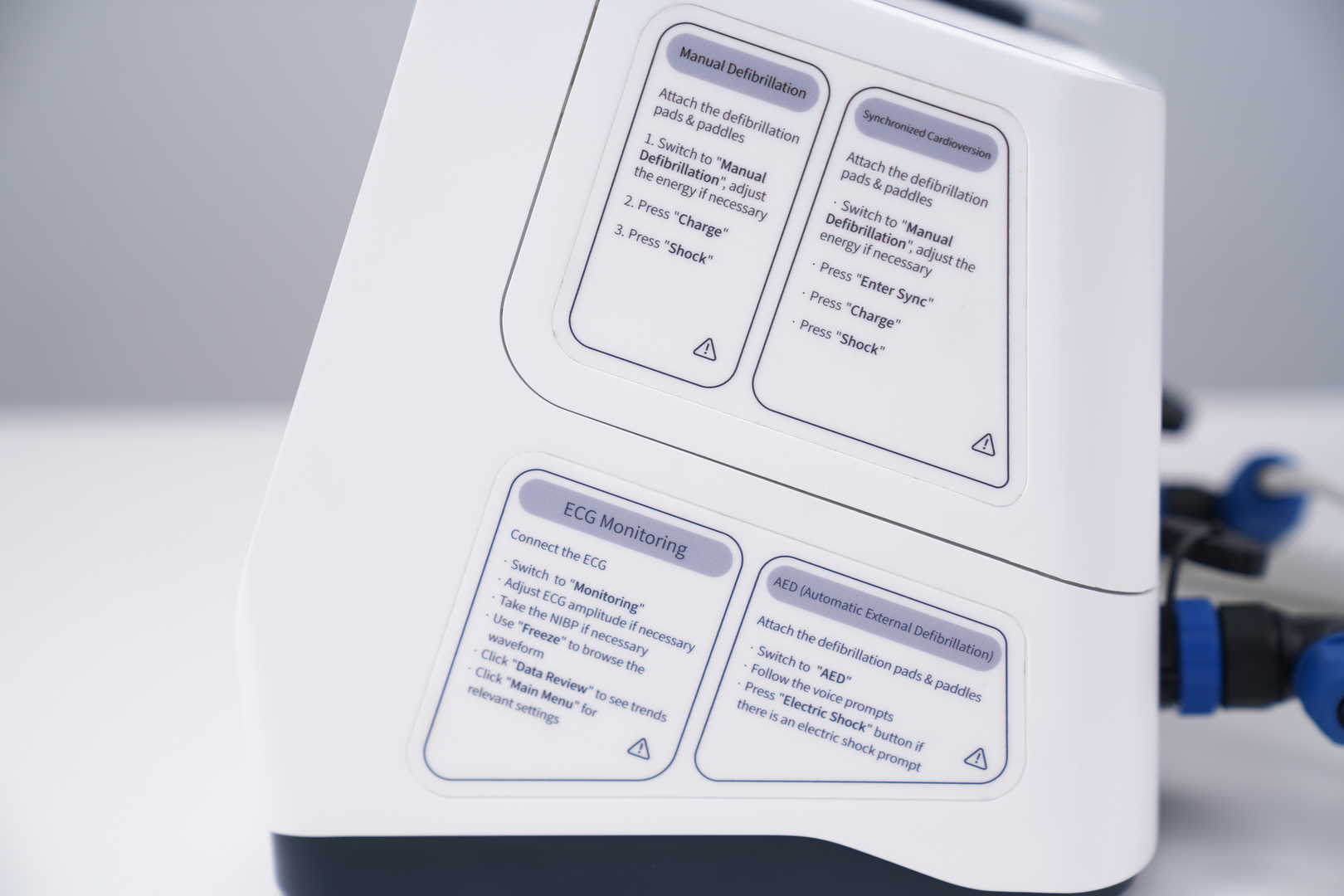

· Instructions for use on DefibReady’s lateral side
Defibrillation Vest
· Can be worn by SP or manikins
· Supports connection with 5-lead ECG
· Supports the use of DefibReady defibrillation paddles & pads
Control System

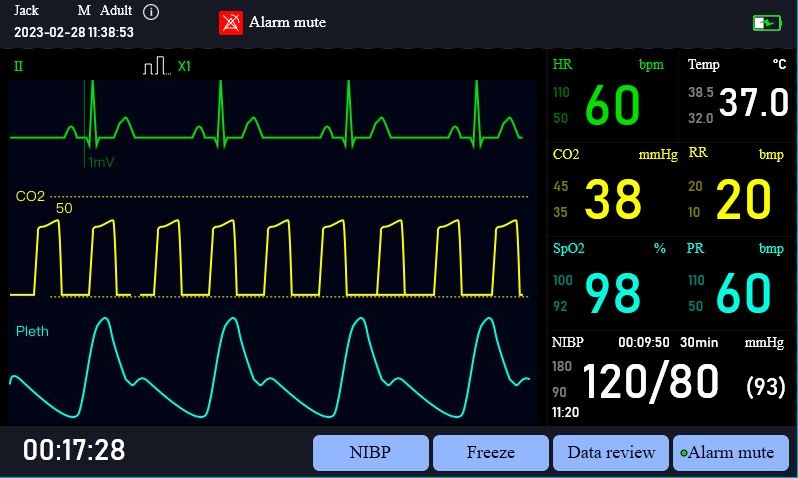

· Monitoring ECG, EtCO2, Pleth, HR, RR, SpO2, NIBP, etc.
· Adjustable ECG leads and gains; the gain ranges are×1/4, ×1/2, ×1, ×2, ×4
· Automatic and manual NIBP measurement available
· Freeze & data review functions available under Monitor Mode; trend charts and NIBP data can be viewed
· Alarms can be setup; when a parameter exceeds its alarming range, alarm logs will be generated automatically
· Status bar will display multiple alarming messages in a loop
· Defibrillation energy can be adjusted; display current defibrillation energy
· There will be a voice prompt when the charging is completed
· Cumulative number of electric shocks and the energy of the latest electric shock are displayed

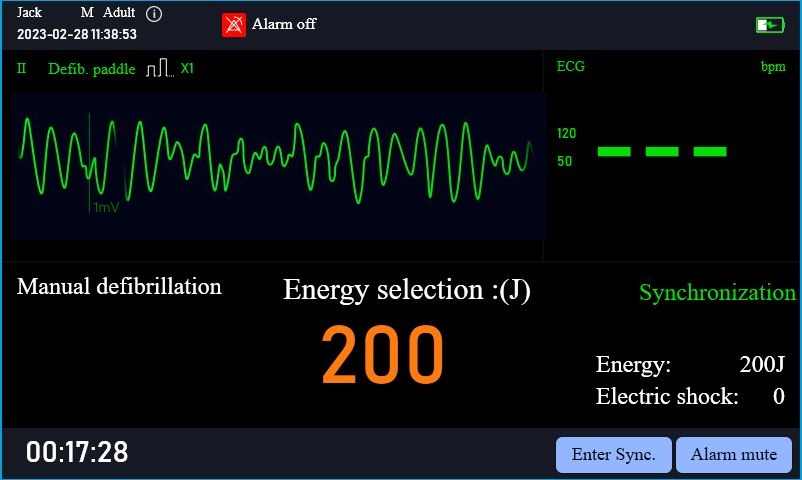

· When in synchronized cardioversion mode, “Synchronization” will appear on the screen
· ECG waveforms change after successful defibrillation
· Complete process training of AED

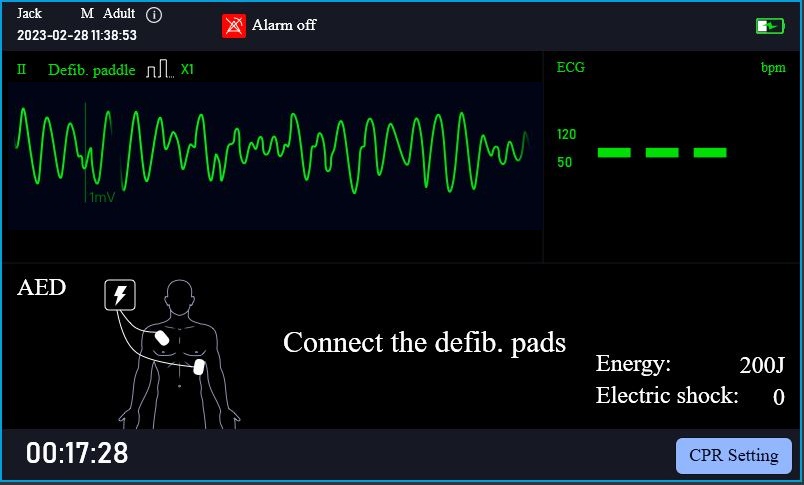

· AED voice and visual guide
· Intelligent analysis of heart rhythm to indicate whether to perform an electric shock
· Metronome available for CPR operation
· Adjustable CPR modes and duration

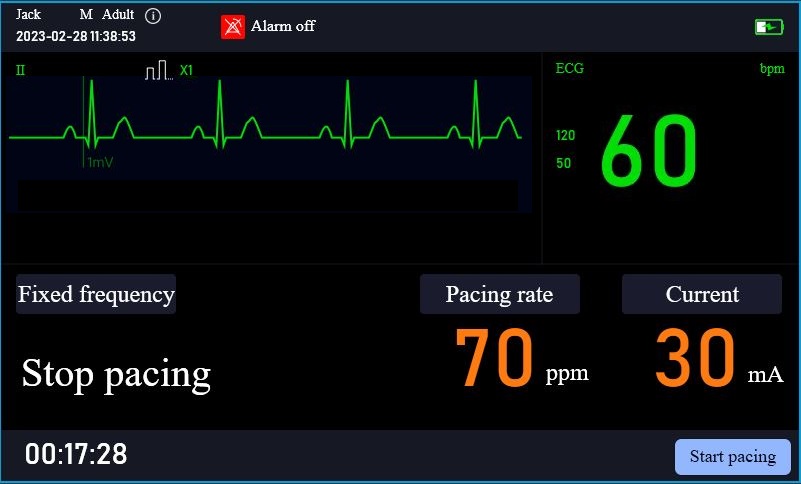

· On-demand pacing & fixed pacing
· Web-based instructor software
· Scan QR code for defibrillator connection & control
· Built-in 16 defibrillation and pacing cases, including adult and pediatric cases like Atrial Fibrillation, Ventricular Fibrillation, Cardiac Arrest, Pace-making, Tachycardia
· Instructor software can display the case flow and manually control the case
· Resuscitation drugs available to enrich the rescue process
· Compliant with 2020 AHA guidelines
· Instructor software can view the vital signs of different case states, including ECG, heart rate, EtCO2, respiratory rate, etc.
· Operation logs can be generated automatically and displayed in instructor software
· The case result can be survived, dead or treatment stopped
