Outline

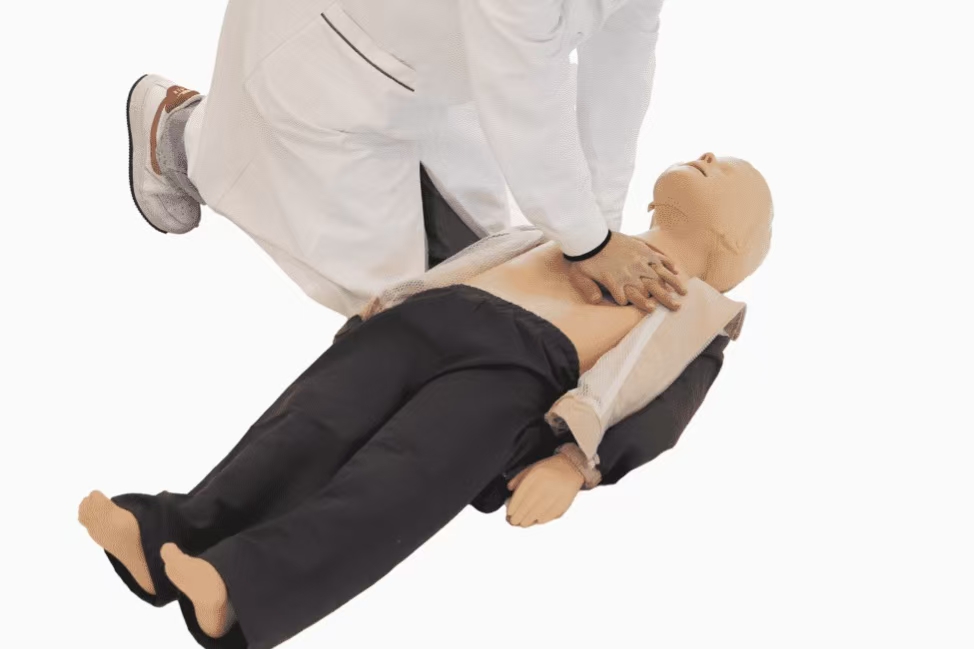

This model represents a five-year-old child, designed for basic CPR training, assessment and debriefing with operation data can be displayed in real time. An ideal choice for trainees not only learning how to perform good quality CPR but also remembering how to do it so they are ready if the time comes to perform for real.
Skills Gained
· Familiar with the anatomy
· Easily understanding the purpose and principles of CPR, and helping enhance the educational learning because of the real-time feedback
· Chest compression
· Mouth-to-Mouth ventilation/Bag Valve Mask ventilation (BVM)
· Head tilt/Chin lift maneuver
· Jaw thrust
Features
· Manikin:
1) Life-like child with correct anatomical structures & palpable bony landmarks including manubrium sterni, rib, xiphoid process, etc.
2) Movable neck and limbs with soft and real feel
3) The airway can be opened by head tilt–chin lift and jaw thrust. Whether the airway is opened can be detected
4) Ventilation can be performed by mouth-to-mouth and BVM. Tidal volume can be detected and evaluated automatically
5) Locate compression position by nipple line
6) When perform CPR, compression data can be displayed in real time. Compression depth and rate, the number of compressions, compression position, full chest recoil can be detected
7) The manikin supports over 100,000 times of chest compression
8) Manual palpable carotid pulse, pulse intensity and frequency controllable
9) Built-in lithium battery with a continuous runtime over 4 hours
10) Wireless design
11) Guardian Child (Pack of 6) can control over six child models for training and examination with operation data from each model displayed
· Software:

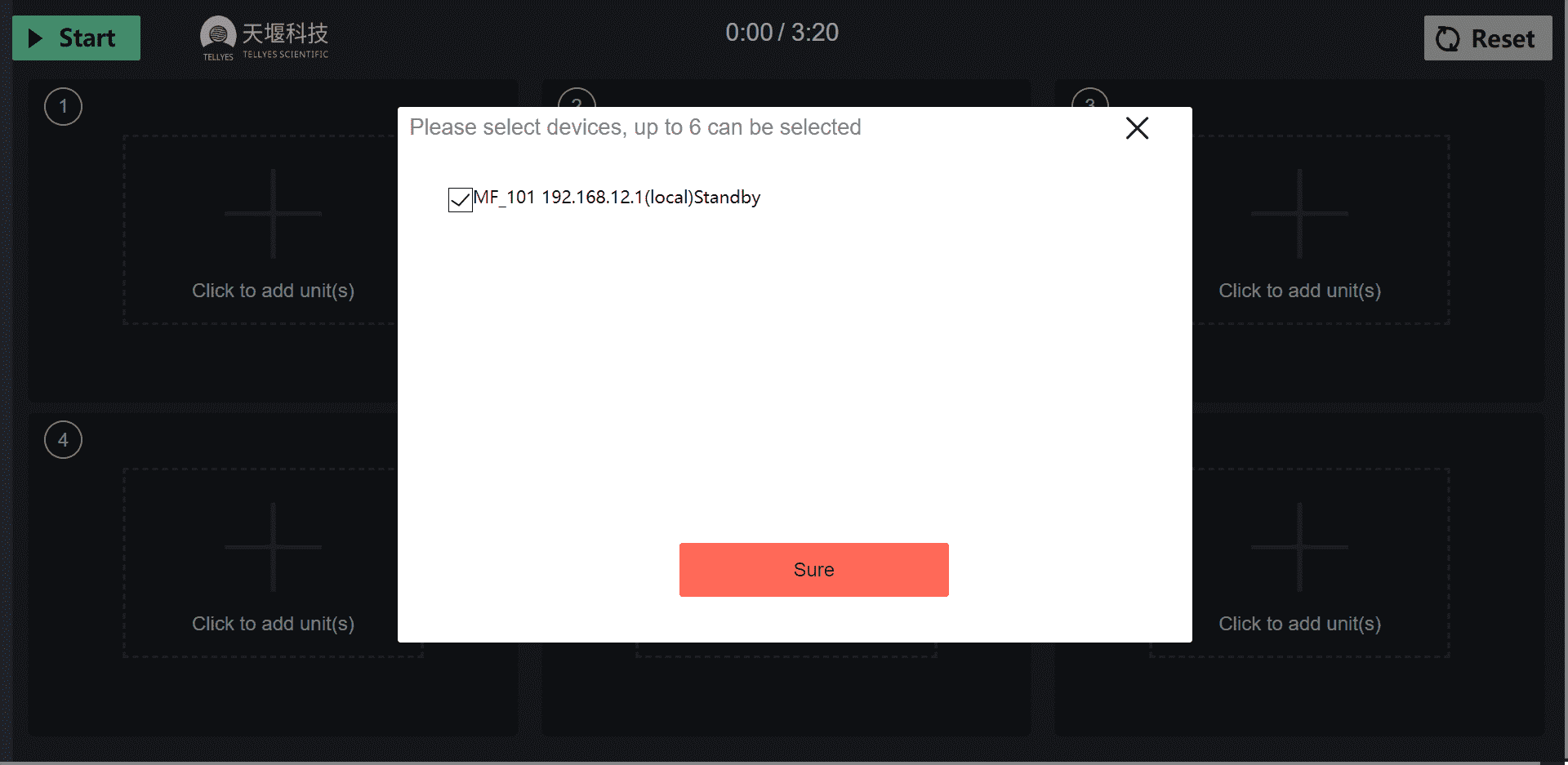

1) QR code allowing users quick access to control system, no need for installation. Scan and use by any terminal such as mobile phone, tablet, PC, etc., compatible with Windows, Android and other mainstream operating systems, easy for use

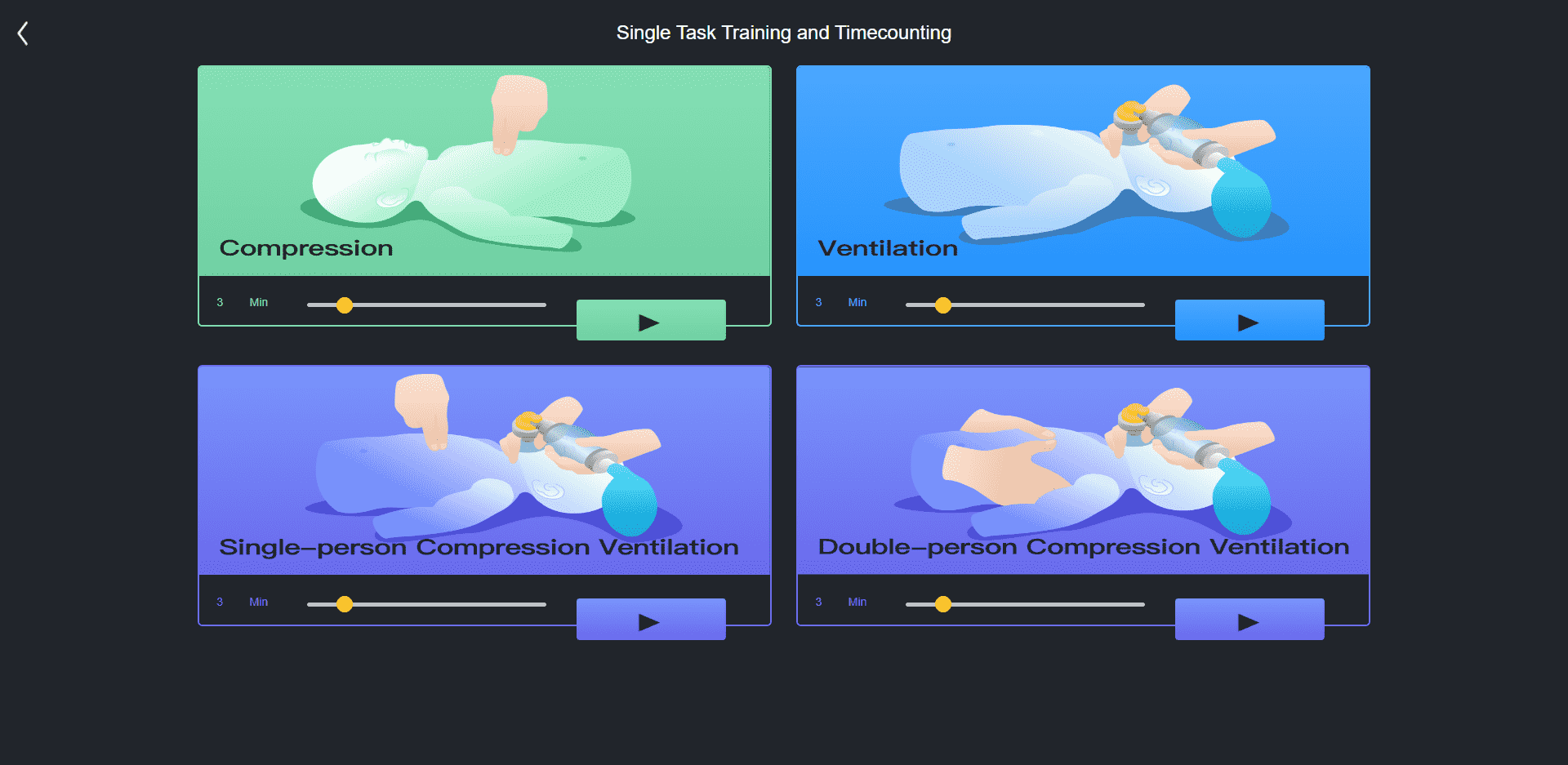

2) Two modes: Instructor mode & Learner mode
a. CPR training with real-time operation data display and objective evaluation

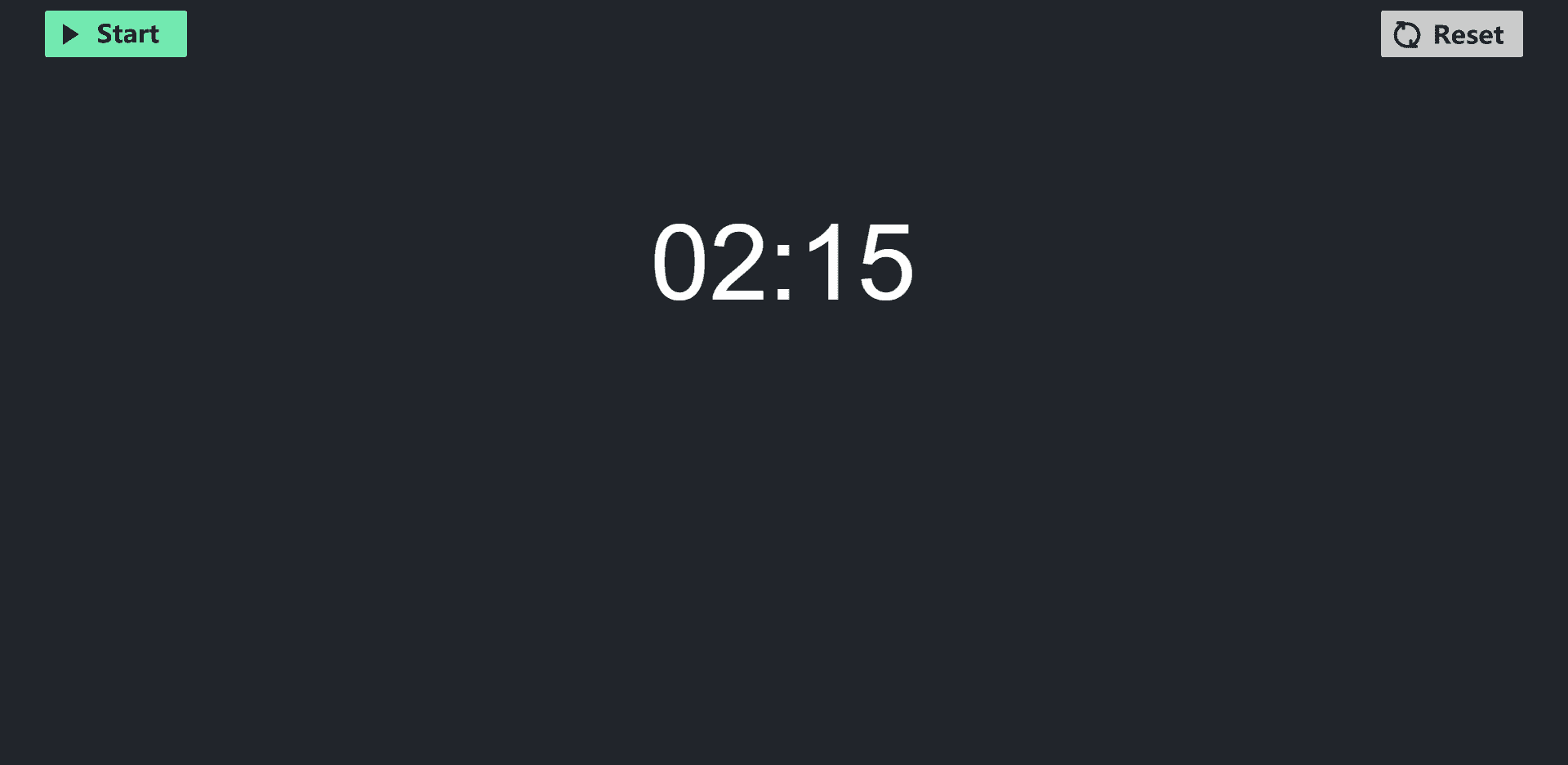

b. Training duration can be customized
3) Instructor can set evaluation criteria or difficult degree, meeting training requirements for different levels of learners

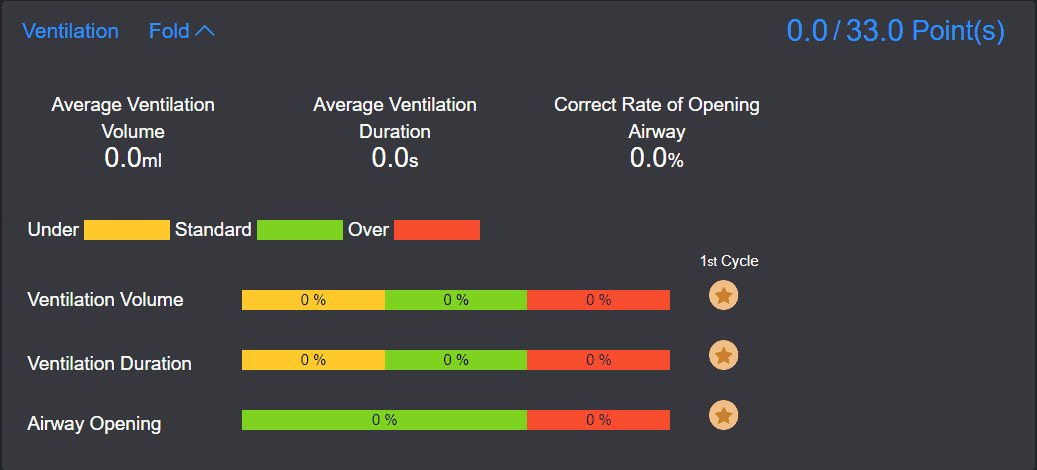

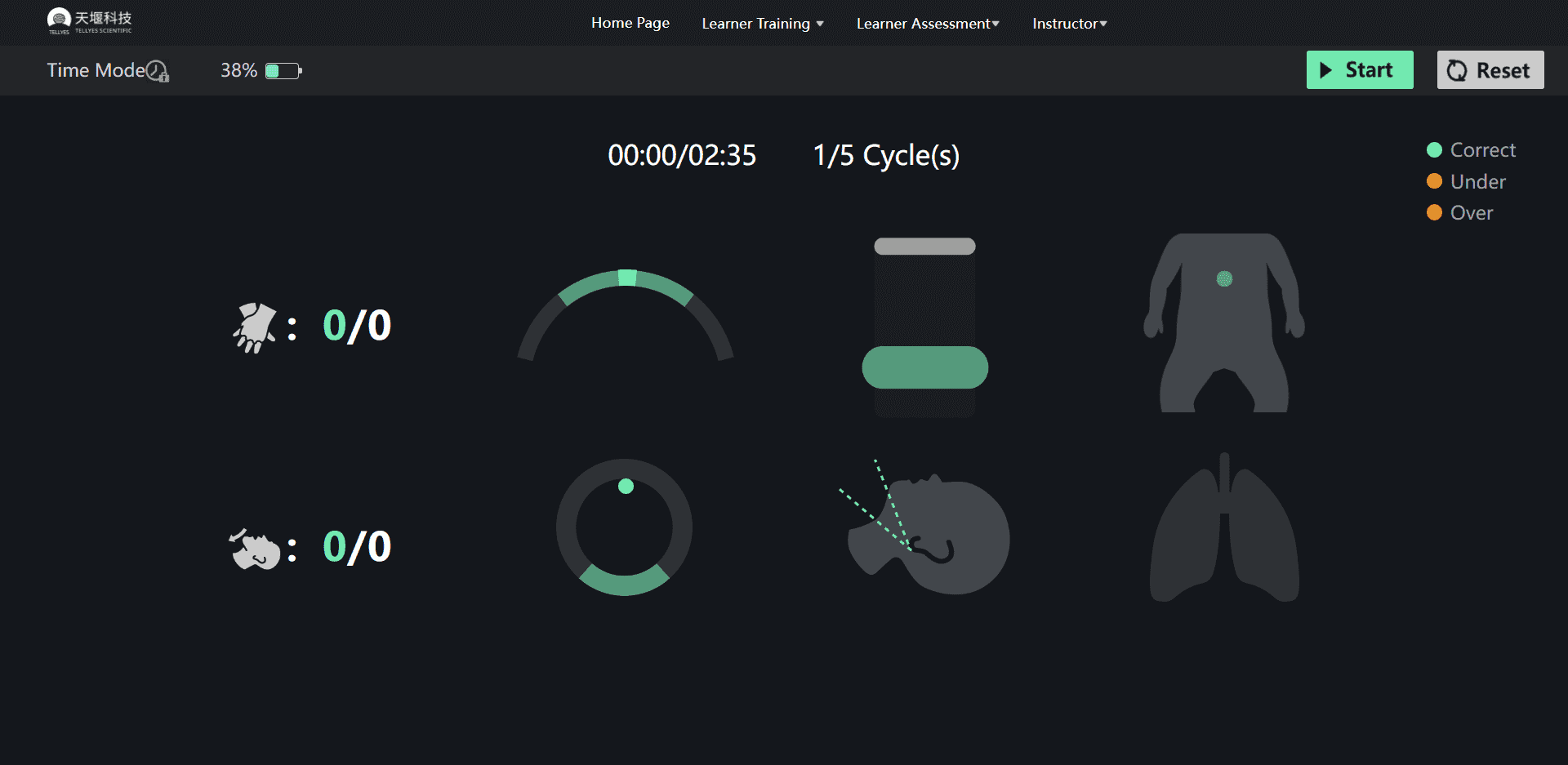

4) Operation data during the training such as compression depth, rate, position, airway opening will be displayed in real time. Users can view the details, convenient to adjust improper operation

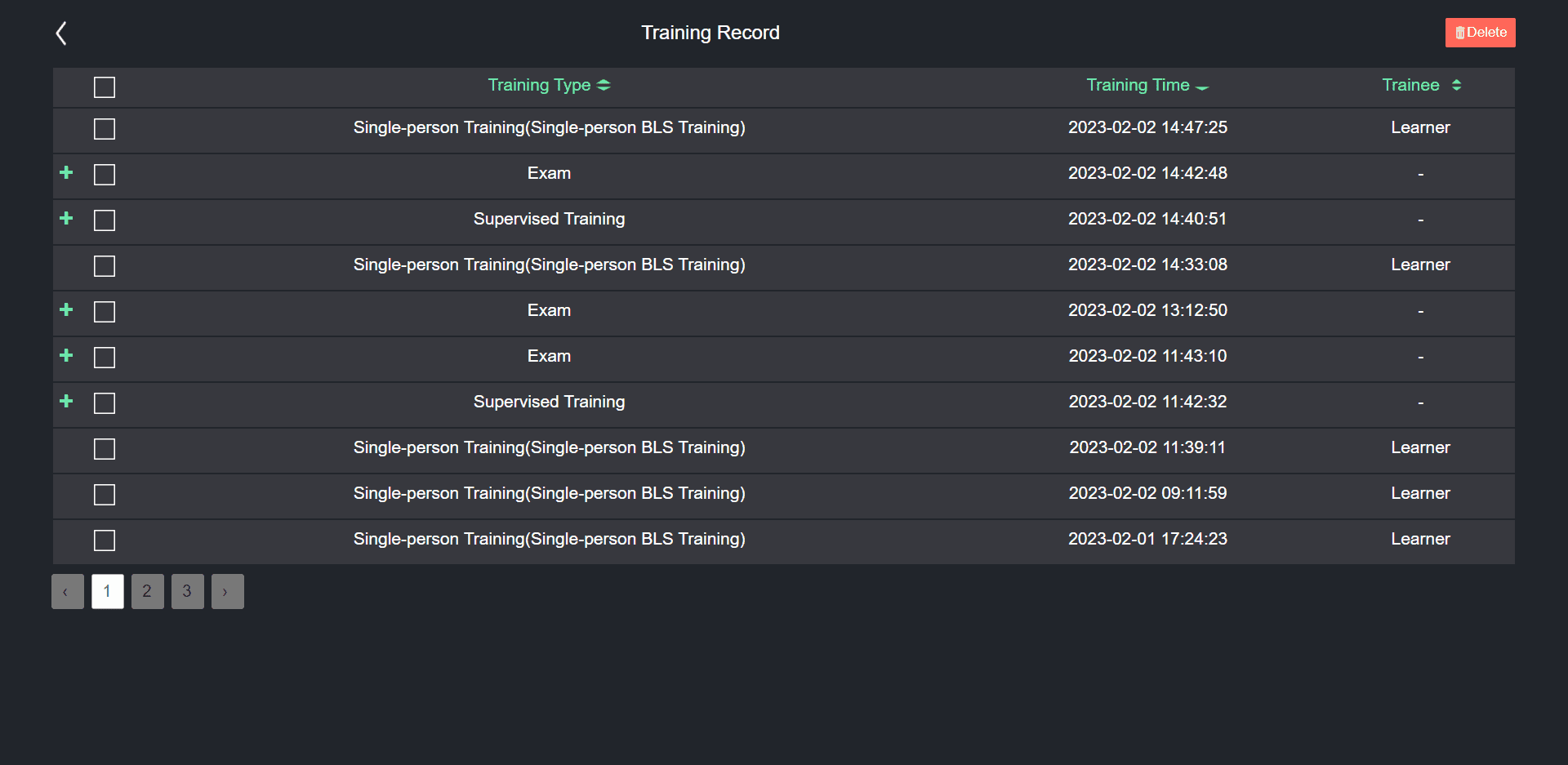

5) All training and assessment data can be automatically saved. Users can view details of a certain training, including the total training scores, total training duration, number of cycle, compression, ventilation, airway opening etc.
6) Data playback for reviewing, evaluation and debriefing
7) It’s possible to save and export results
8) It’s possible to automatically calibrate time to ensure the time of the score list matches the time of the device
9) Guardian Child (Pack of 6) supports integrating the objective training data collected by the sensor and the instructor’s subjective data to generate an exportable training transcript
10) Guardian Child (Pack of 6) offers optional router mode and network mode
